RBC-1

Remote Bass Control for Select JL Audio Amplifiers

The RBC-1 remotely controls the Bass Level of the following JL Audio amplifiers:

JD-Series: JD250/1, JD500/1, JD1000/1
JX-Series: JX250/1, JX250/1D, JX500/1, JX500/1D, JX1000/1D
HX-Series: HX300/1 in Low Pass Mode (Note: M-RBC-1 is also available)
MHX-Series: MHX300/1 in Low Pass Mode (Note: M-RBC-1 is also available)
MX-Series: MX300/1, MX500/1 in Low Pass Mode (Note: M-RBC-1 is also available)
RD-Series: RD500/1, RD1000/1, RD1500/1, RD900/5

When the RBC-1 is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.

The RBC-1 remotely controls the Bass Level of the following JL Audio subwoofer systems:

PowerWedge+: All Models
MicroSub+: All Models

When the RBC-1 is connected to the above subwoofer systems, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.

The RBC-1 remotely controls the Bass EQ boost feature of the following JL Audio amplifiers:

Slash v3 Series: 600/1v3, 1200/1v3
Slash v2 Series: 250/1v2, 500/1v2, 1000/1v2, 450/4v2
Original Slash Series: 500/1, 1000/1, 450/4, 500/5
G-Series: All Models
A-Series: All Models
e-Series: All Models (including marine versions)
M-Series: M1400, M1700, M2150, M2250, M4300, M4500, M6450, M6600

When the RBC-1 is connected to the above amplifiers, the on-board “Boost” control of the amplifier is defeated and the RBC-1 becomes the active controller.

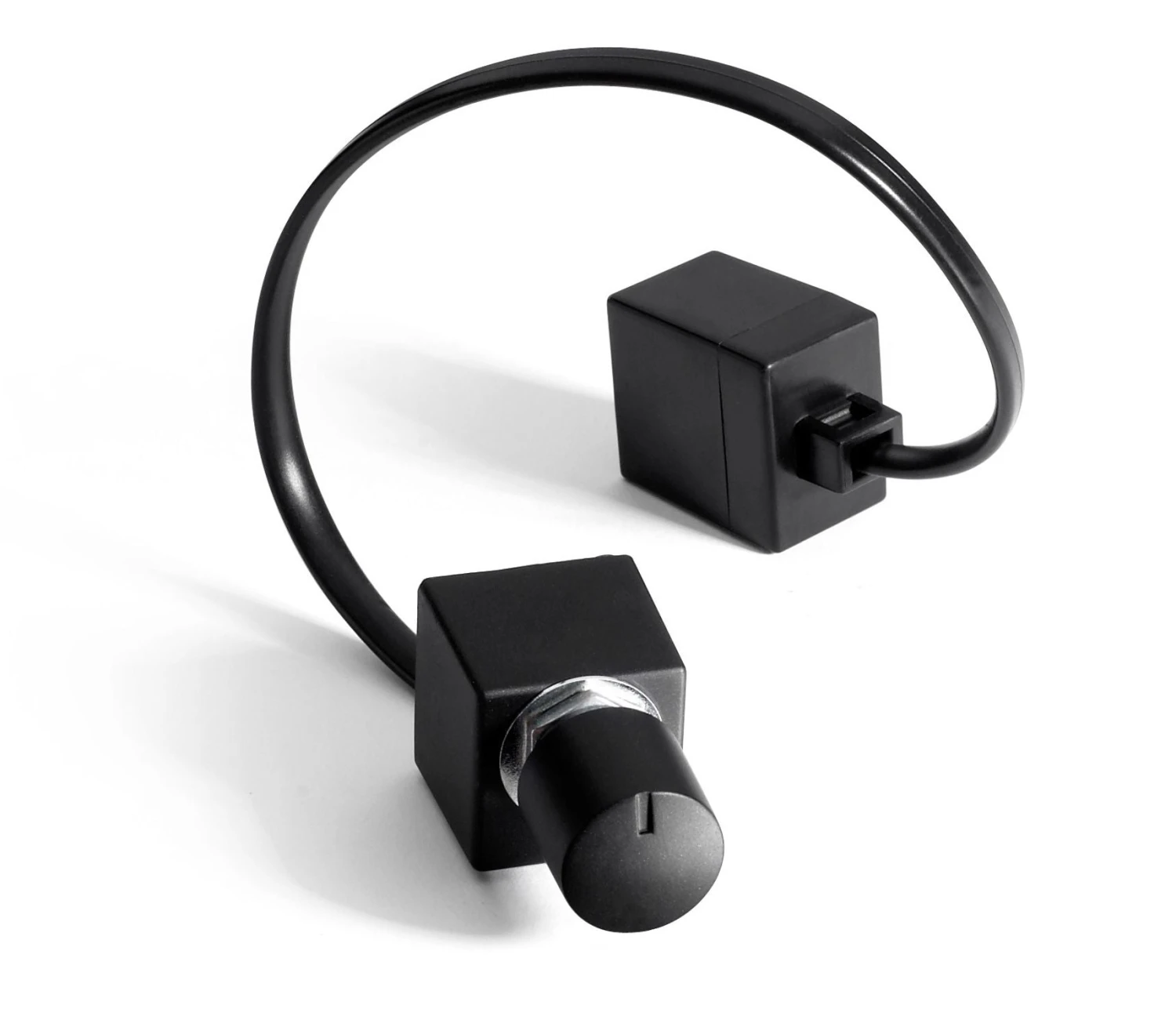

The RBC-1 kit includes the rotary control with a black ABS knob, mounting hardware and one 18 ft. (5.5 m) cable.

Download RBC-1 Product Manual



USA Limited Warranty:  Two (2) years from the original date of purchaseWarranty Details
